High Frequency (HF) Wood Laminating Machines harness the power of dielectric heating to create fast, uniform and ultra‑strong bonds between wood substrates and decorative layers. Unlike conventional hot‑press or cold‑press methods, HF laminators use electromagnetic fields—typically at 13.56 MHz—to excite polar molecules in the adhesive layer itself, generating heat exactly where it’s needed and curing the bond from the inside out.

Principle of Operation

1. Dielectric Heating: High frequency alternating current is applied through electrodes/clamps on either side of the laminate stack.

2. Selective Heating: Polar adhesive molecules (e.g., water‑based glues) absorb the HF energy, heating rapidly—often within seconds—while the wood itself remains relatively cool.

3. Pressure Application: Hydraulic or pneumatic systems maintain controlled pressure, ensuring intimate contact between veneers or laminates and the substrate.

4. Cure and Release: Once curing is complete (monitored by temperature or time), pressure is released and the laminated panel is removed.

Key Advantages

Ultra‑Fast Curing: Typical press times range from 60 to 180 seconds, drastically reducing cycle times and increasing throughput.

Energy Efficiency: By heating only the adhesive layer rather than entire platens, HF presses consume up to 50 % less energy compared to thermal hot‑press systems.

Superior Bond Strength: Internal heating eliminates cold spots, delivering consistently high‑strength bonds that resist delamination, even under moisture or stress.

Minimal Thermal Stress: Wood fibers remain cooler, reducing risks of warp, discoloration or surface burns.

Process Control & Repeatability: Integrated sensors and PLC controls allow precise adjustment of power, time and pressure for different panel sizes, adhesives and veneer types.

Typical Applications

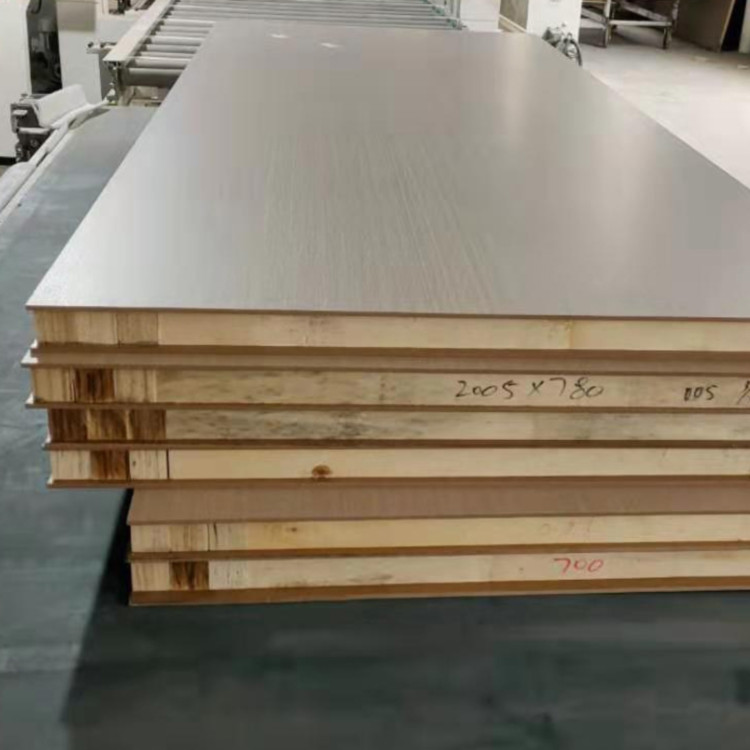

Veneer Lamination: Thin decorative veneers onto MDF, particleboard or plywood for furniture panels, cabinetry doors and architectural millwork.

Wood Case Panel Press: Wood box top and bottom panel stick press.

Specialty Composites: Production of engineered panels with multiple layers (e.g., acoustic, fire‑retardant or decorative cores).

Machine Configurations

Manual HF Laminators: Operator loads and unloads panels; ideal for low‑volume or sample runs.

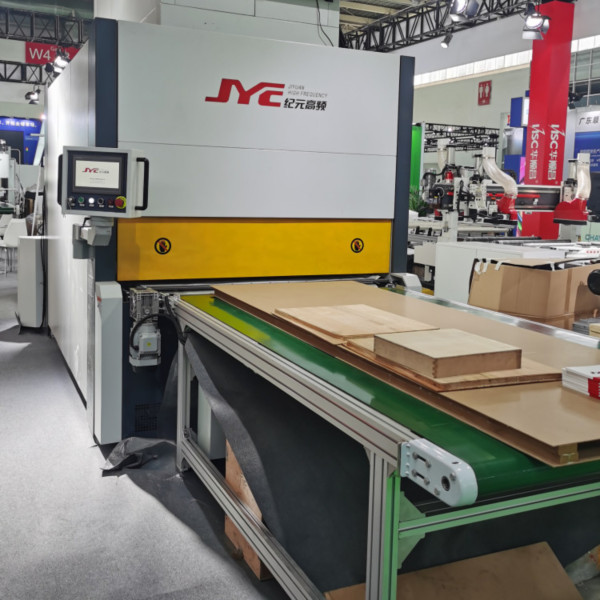

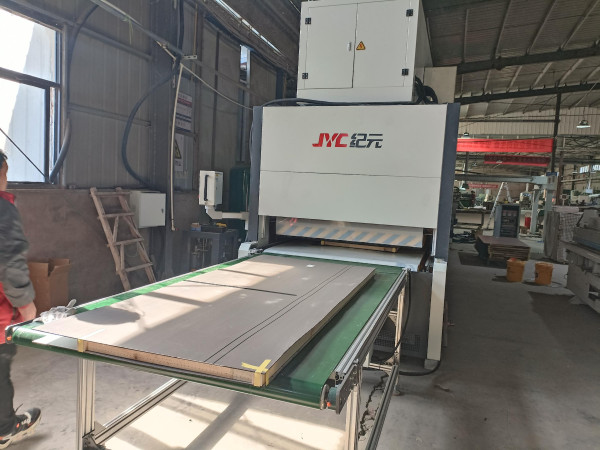

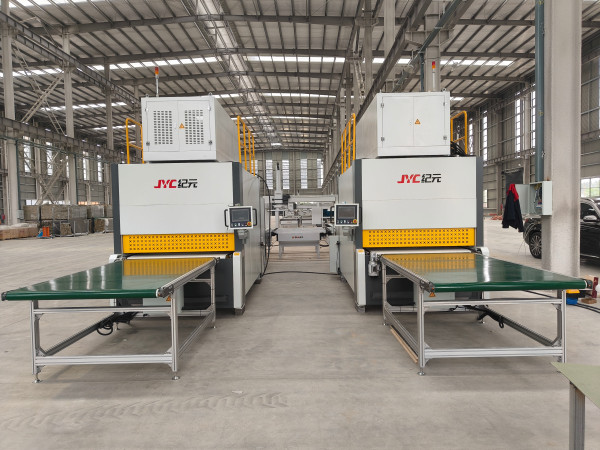

Semi‑Automatic Lines: Conveyorized inlet/outlet, automatic pressure control; balances efficiency with lower investment.

Fully Automatic Systems: Robotic loading, full PLC recipe management, multi‑station presses for high‑volume OEM production.

Selecting the Right Machine

1. Panel Size & Throughput: Match press dimensions and cycle time to your production targets.

2. Adhesive Compatibility: Ensure your chosen glue (water‑based, etc.) has the polarity and viscosity suited for HF curing.

3. Control & Safety Features: Look for real‑time power monitoring, over‑temperature cut‑offs and CE‑compliant safety guards.

4. Service & Support: A local service network and in‑depth operator training will maximize uptime and yield.

High frequency wood laminating machines revolutionize panel production by combining speed, strength and energy savings. Whether you’re a custom furniture shop, cabinet manufacturer or large‑scale OEM, integrating HF technology can boost your capacity, improve product quality and reduce your energy footprint—all while delivering veneers and laminates that stand the test of time.
