CE High Frequency Wood Board Joining Machine

High frequency wood board joining machine, used high frequency heating to cure the glue with 2-direction pressure to join the wood board, which is highly efficient in producing the high-flatness wood board.

  • JYC
  • China
  • 40 Days
  • 200 Set per year
  • Information

CE High Frequency Wood Board Joining Machine

Details

Conveyor type high frequency board jointing machines have many advantages, like digital production and high yield, etc. It is suitable for joining produce wood/bamboo furniture panels, edge glued boards, wooden door edge banding, L-shaped door cover line, wooden door cabinet core panels, short board, long boards, thick boards, thin boards, etc.

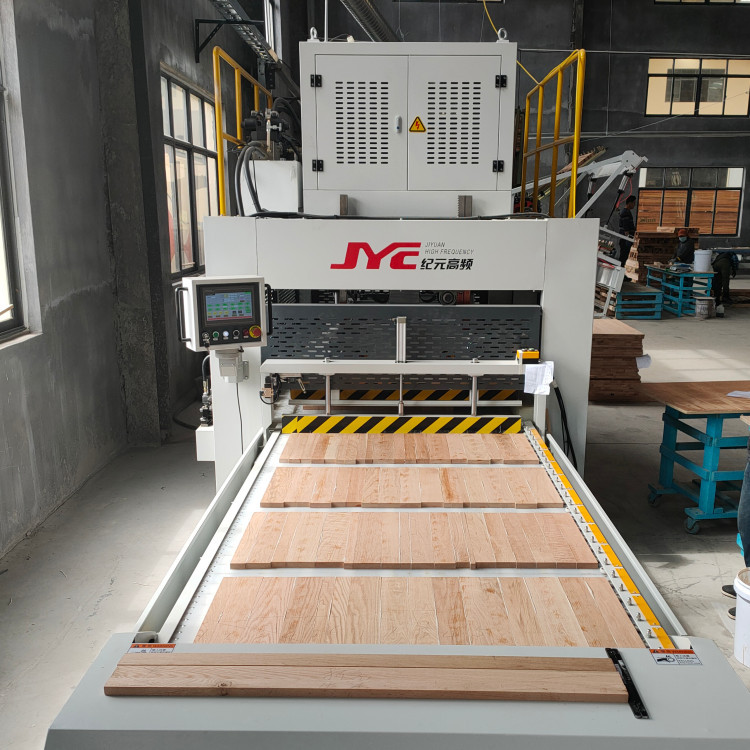

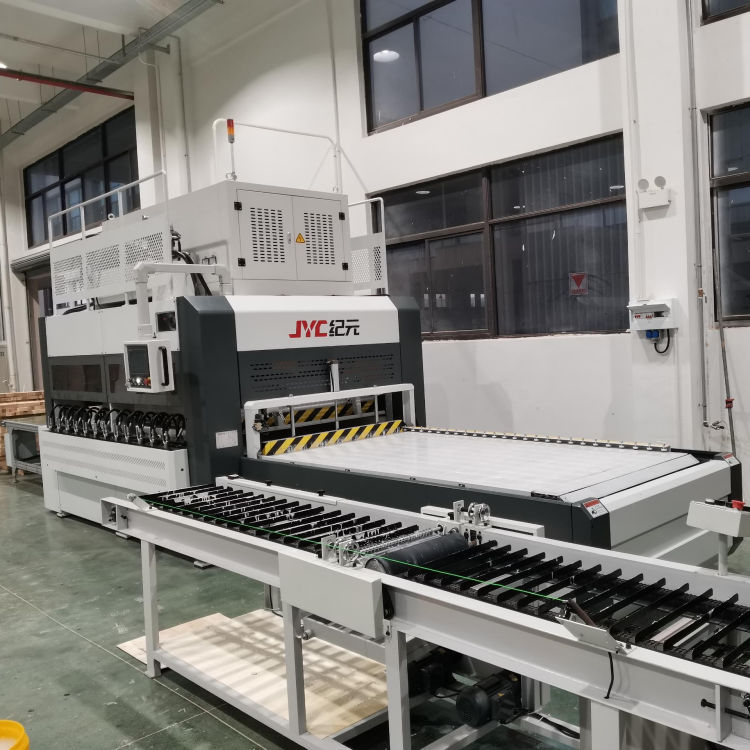

wood board joining machine


Features

1. One-button operation, digital production.

2. The chain conveyor belt is used for feeding, which is stable, and fast, and the boards are not easy to misplacement, to ensure high yield.

3. Pressure can be adjusted for different boards to lower the loss.

4. Wide application range, can join different size wood boards.

5. Support remote assistance, realize remote maintenance, and system upgrade.

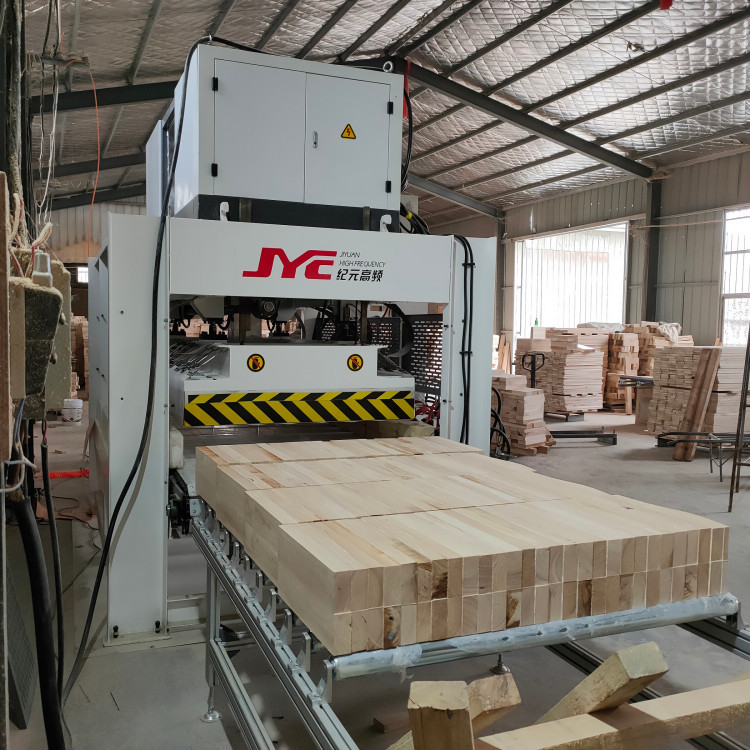

CE Bamboo board joining machine



Technical Specification

ModelGJB2513-L56-JYGJB3213-L68-JYGJB4213-L100-JYGJB5213-L112-JYGJB6213-L140-JY
Power SupplyAC 380V,50Hz
HF Power20KW30KW40KW50KW60KW
HF Frequency6.78MHz-13.56MHz
Processing Size2500mm*1300mm3200mm*1300mm4200mm*1300mm5200mm*1300mm6200mm*1300mm

Processing thickness

8-80mm
Vertical Pressure20T20T40T40T50T
Lateral Pressure36T
48T
60T
72T
90T
Feeding and Dischargeing WayChain conveyor/roller table


We can provide professional suggestions and customized services. Welcome to inquiry!
