Radio Frequency Automatic Timber Drying Machine

High frequency wood vacuum dryer can make full automatic control of the wood drying process, truly achieve "Unattended". It provides a variety of drying process options, and multiple sensor monitoring devices to ensure the quality of wood drying. Also, have an intuitive operation interface, support remote assistance, and realize remote maintenance and system upgrade. (Optional)
The product has approval by CE certification, has 3 utility model patent certificates, and 2 invention patent certificates.

  • JYC
  • China
  • 40 Days
  • 200 Set per year
  • Information

Radio Frequency Automatic Timber Drying Machine

Details

High Frequency(Radio Frequency) Wood Vacuum Dryer can high efficiently dry wood to reduce the moisture content of wood by high frequency vacuum heating system. Not only eliminates internal stress, but also balances the moisture of timber, with no cracks, and no deform. It can ensure the wood has good condition and quality after drying, whatever wood veneer or thick/large wooden board.

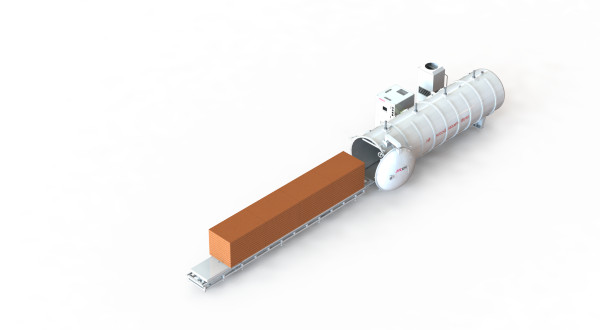

HF vacuum timber drying machine


Features

1. High efficiency: high frequency heating, heating inside and outside at the same time, uniform heating, fast speed.

2. Stable quality: quickly dehydrate under vacuum and low temperature. The moisture content of the wood can be balanced and the wood can be dried with no deformation, no discoloration, and no cracks.

3. Eliminates internal stress of wood, good condition to next procession.

4. Versatility: The drying process can be adjusted according to the thickness, density, and moisture content of the wood, which is suitable for drying all wood.

5. Full automatic control, intelligent operating system, easy to operate.

6. Sterilization: It has insecticidal and sterilization functions.

7. Environmental protection: No need for chemical additives. Only need electric power can be used.

8. Energy saving: JYC's Self-developed system saves more energy compared with other brands of machines.

9. Adopt multiple temperature sensing and monitoring devices such as optical fiber to ensure drying quality and equipment stability.

10. The machines have high-quality production with stainless steel tanks and brand spare parts. (Siemens PLC, Schneider electrical components)

11. Support remote assistance, realize remote maintenance, and system upgrade.

12. We offer many capacities for choosing and customizing. 10 CBM below capacity, please click here.


RF Lumber drying machine


Technical Specification

ModelGJG-10II-30(50)B-JYGJG-14II-50(80)B-JYGJG-20II-50(80)B-JYGJG-30II-100(120)B-JY
Capability(m³)10142030
Power SupplyAC 380V,50Hz
HF Power
30/50KW50/80KW80/100KW100/120KW
HF Frequency6.78MHz/13.56MHz

Vacuum

-0.092MPa
Effective drying size(L*W*H)6000mm*1300mm*1300mm8000mm*1300mm*1300mm8000mm*1600mm*1600mm8000mm*2000mm*2000mm


We can provide professional suggestions and customized services. Welcome to inquiry!
